150 W/m² for 24–100 m². See the exact mats, WiFi thermostats and load modules for each kit size in the contents table. Read more.

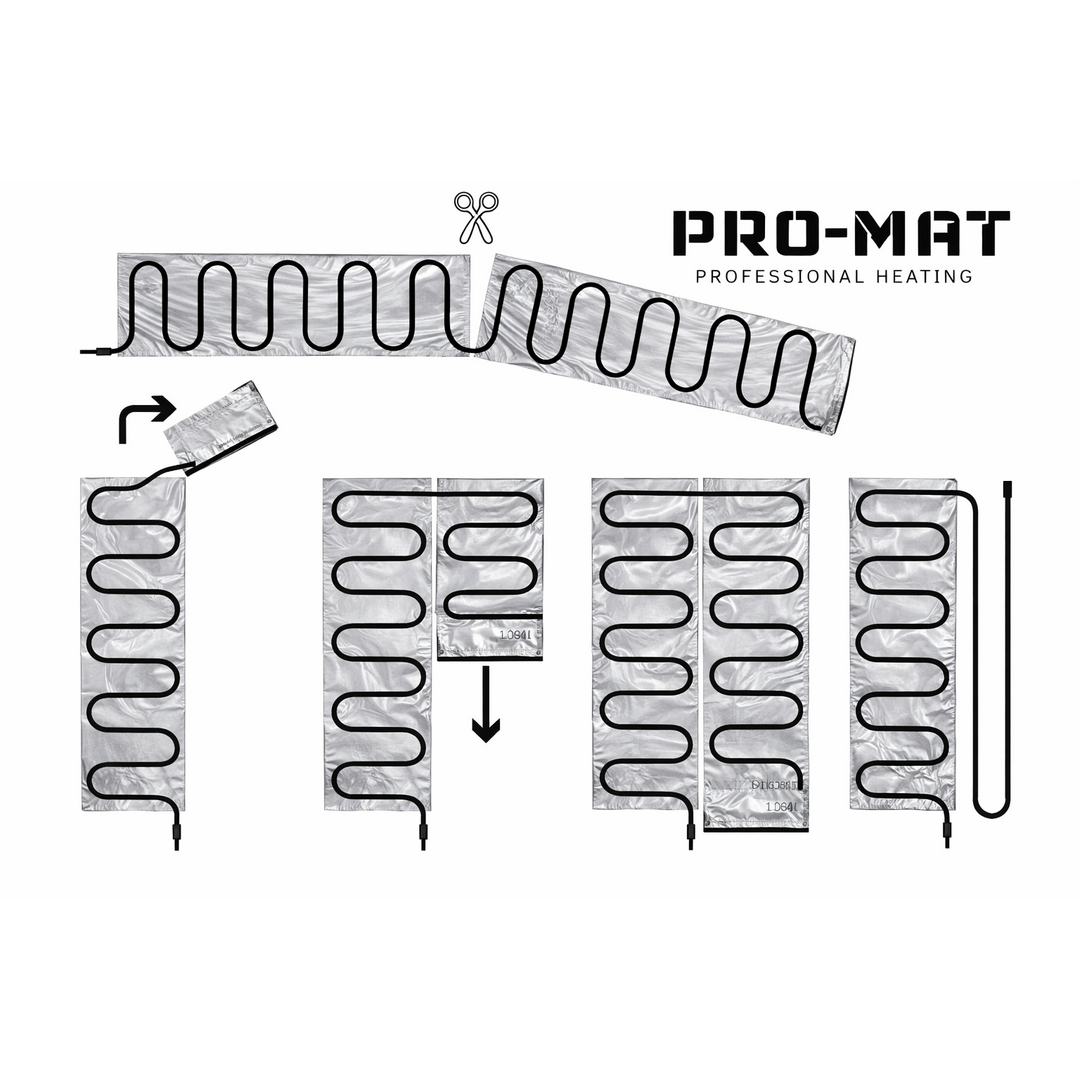

Electric underfloor heating at 150 W/m² for 24 to 100 m² of net heated floor area. Your selected kit size determines the individual mats and the number of thermostats and load modules.
| Kit size | Mats: quantity × m² | WiFi thermostats | Load modules |
|---|---|---|---|
| 24 m² | 2×12 | 1 × 25A | 0 |
| 25 m² | 1×10 + 1×15 | 1 × 25A | 0 |
| 27 m² | 1×12 + 1×15 | 1 × 25A | 0 |
| 30 m² | 2×15 | 1 × 25A | 0 |
| 35 m² | 1×5 + 2×15 | 1 × 25A | 0 |
| 40 m² | 1×10 + 2×15 | 1 × 25A | 1 |
| 45 m² | 3×15 | 1 × 25A | 1 |
| 50 m² | 1×5 + 3×15 | 1 × 25A | 1 |
| 55 m² | 1×10 + 3×15 | 1 × 25A | 1 |
| 60 m² | 4×15 | 2 × 25A | 0 |
| 65 m² | 1×5 + 4×15 | 2 × 25A | 0 |
| 70 m² | 2×5 + 4×15 | 2 × 25A | 0 |
| 80 m² | 2×10 + 4×15 | 2 × 25A | 1 |
| 100 m² | 1×10 + 6×15 | 3 × 25A | 0 |
The table lists the standard components for each size. A floor sensor is supplied with the thermostat. The kit size is the combined area of the individual mats; select it according to the floor area actually being heated.
This is a floating foil system. Use a suitable underlay and flooring approved by its manufacturer for electric underfloor heating. For click vinyl, check required protective layers, temperature limits and thermal resistance. Do not glue vinyl directly onto the foil.
Have a qualified electrician assess the total load, circuit allocation, protection and connection of thermostats and load modules. An additional load module does not increase the capacity of an existing circuit.
Do not glue PVC flooring directly onto heating foil. This requires a suitable floor build-up with an intermediate layer approved by the relevant suppliers. We do not sell these intermediate boards, and they are not included with the foil heating. Have your proposed floor build-up assessed before ordering.
