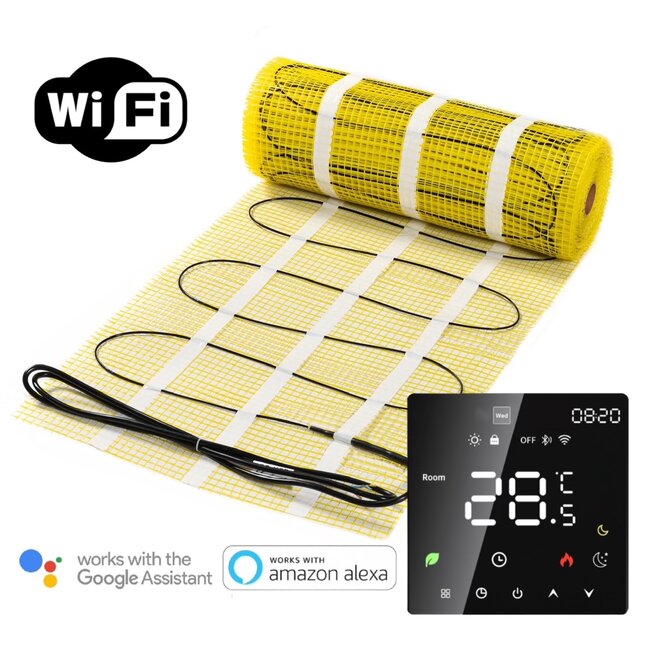

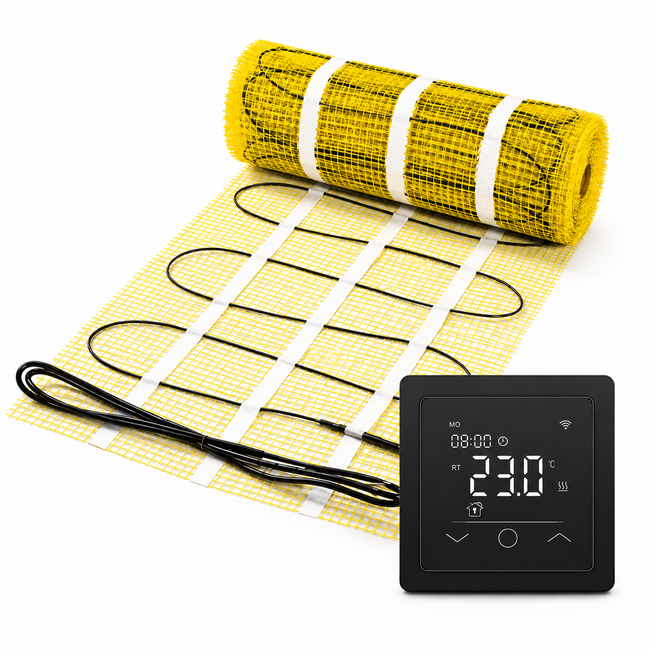

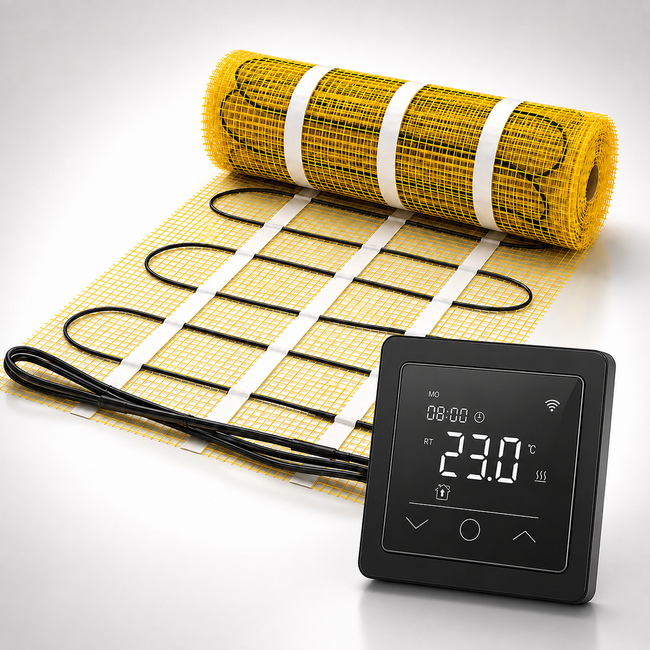

Pro-Series Set with PS60 WiFi Thermostat for Electric Underfloor Heating

Discover the upgraded Pro-Mat Pro-Series: the ultimate electric underfloor heating system with an ultra-thin build-up height of just 2 mm, now supplied as standard with the smart Pro-Mat Pro-Series PS60 WiFi thermostat. This high-quality heating mat is available in various sizes and delivers efficient and even heat distribution in every room with an output of 150 watts per m². Ideal for custom solutions and situations where a minimal installation height is required.

The new PS60 thermostat combines sleek design with smart technology and energy-saving features such as open-window detection and self-learning adaptive control. Thanks to precise temperature regulation, extensive weekly programming, and control via the Tuya Smart App, you can always enjoy optimal comfort and efficient energy consumption. In addition, the thermostat is suitable for standard 55×55 mm cover frames, making it easy to replace existing thermostats without demolition or structural modifications.

The thermostat can be fully controlled remotely via smartphone and supports Amazon Alexa and Google Assistant for added convenience. The PS60 also includes an energy consumption monitor and power failure memory function.

Supplied as a complete set

• Pro-Mat Pro-Series heating mat
• Pro-Mat Pro-Series PS60 WiFi thermostat including floor sensor
• Lifetime warranty on the heating mat

Note: This underfloor heating system must always be levelled or installed within the tile adhesive layer. Sets of 16, 17, 18, 19, and 22 m² consist of 2 mats.

More information about the Pro-Mat Pro-Series PS60 thermostat

The Pro-Mat PS60 has been developed with both ease of use and simple installation in mind. Thanks to its universal design, this thermostat is perfectly suited for renovation projects as well as new-build applications.

Suitable for standard 55×55 mm cover frames

The PS60 fits standard 55×55 mm cover frames and can therefore easily be combined with existing switchgear series. In most cases, installers can retain the existing cover frame, preventing additional work and modifications.

Compatible with cover frames and switchgear from, among others:

• Berker
• ABB
• Schneider Electric
• ELKO
• Danfoss
• Liregus

This makes the PS60 particularly attractive for installers who prefer working with existing frameworks and want to replace thermostats quickly without demolition work or modifications to the flush-mounted box.

Smart and future-proof features

• Open Window Detection for energy savings
• Self-learning adaptive control
• WiFi control via the Tuya Smart App
• Support for Amazon Alexa and Google Assistant
• Energy consumption monitor
• Advanced weekly programming with individual daily schedules
• Memory function in case of power failure

Compatible with existing floor sensors

The PS60 supports multiple sensor resistances:
3k / 5k / 6.8k / 10k / 12k / 15k / 20k / 22k / 33k / 47k

This means that in many situations the existing floor sensor does not need to be replaced, making installation faster and easier.

Technical specifications

• Temperature range: 5 – 40 °C
• Differential: 0.5 °C
• Setting and reading accuracy: 0.1 °C
• Protection rating: IP21
• CE & RED certified
• Flush-mounted installation 55×55 mm

Available in white and full black, suitable for both modern and classic interiors.
