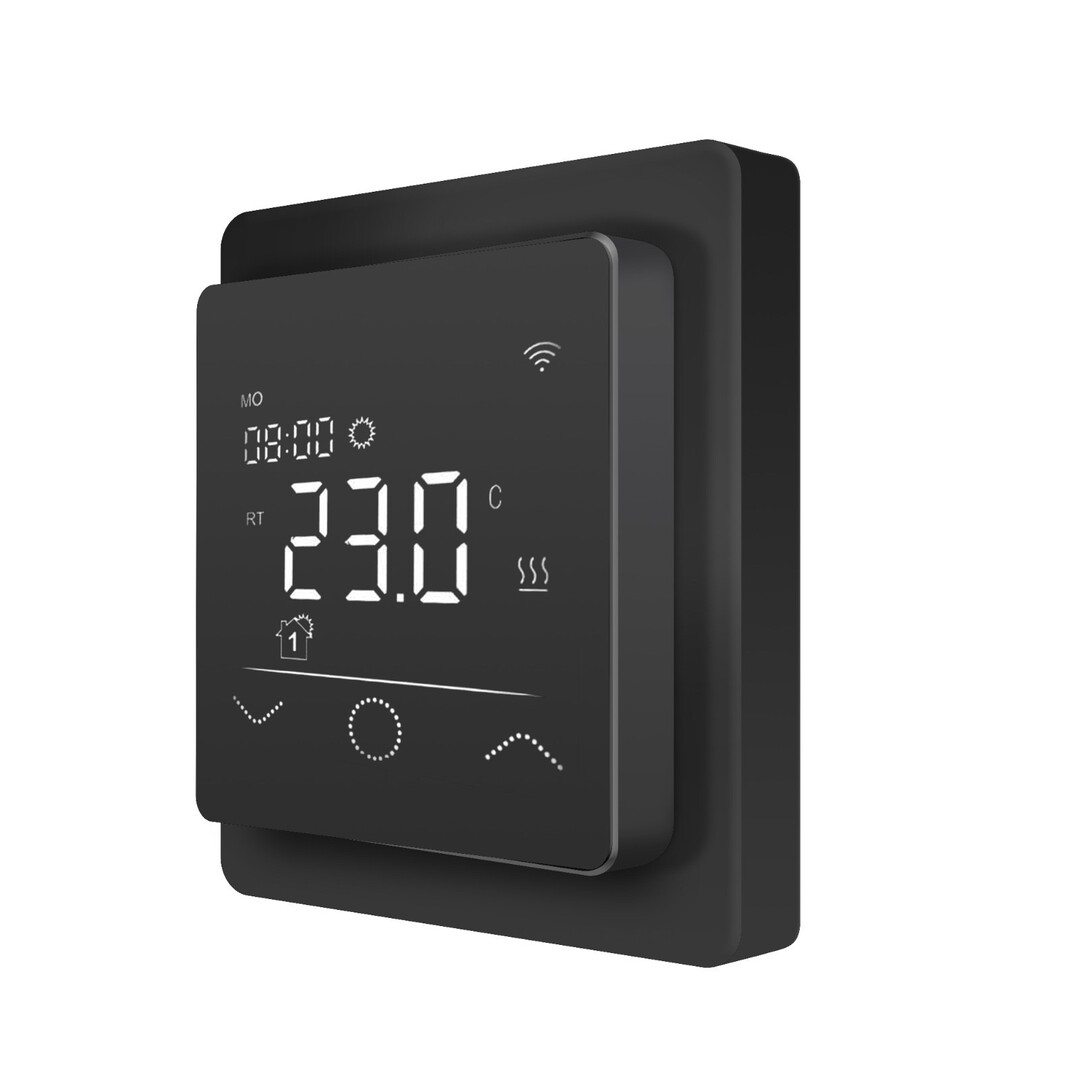

Pro-mat Pro Series PS60 – Smart WiFi Thermostat for Underfloor Heating

The new generation of thermostats – future-ready

The Pro-mat Pro Series PS60 is a renewed, premium WiFi thermostat for electric underfloor heating. It combines modern technology, energy-saving eco functions and a sleek design with maximum installation flexibility.
Thanks to features such as Open Window Detection and self-adaptive control, the PS60 already complies with future European regulations.

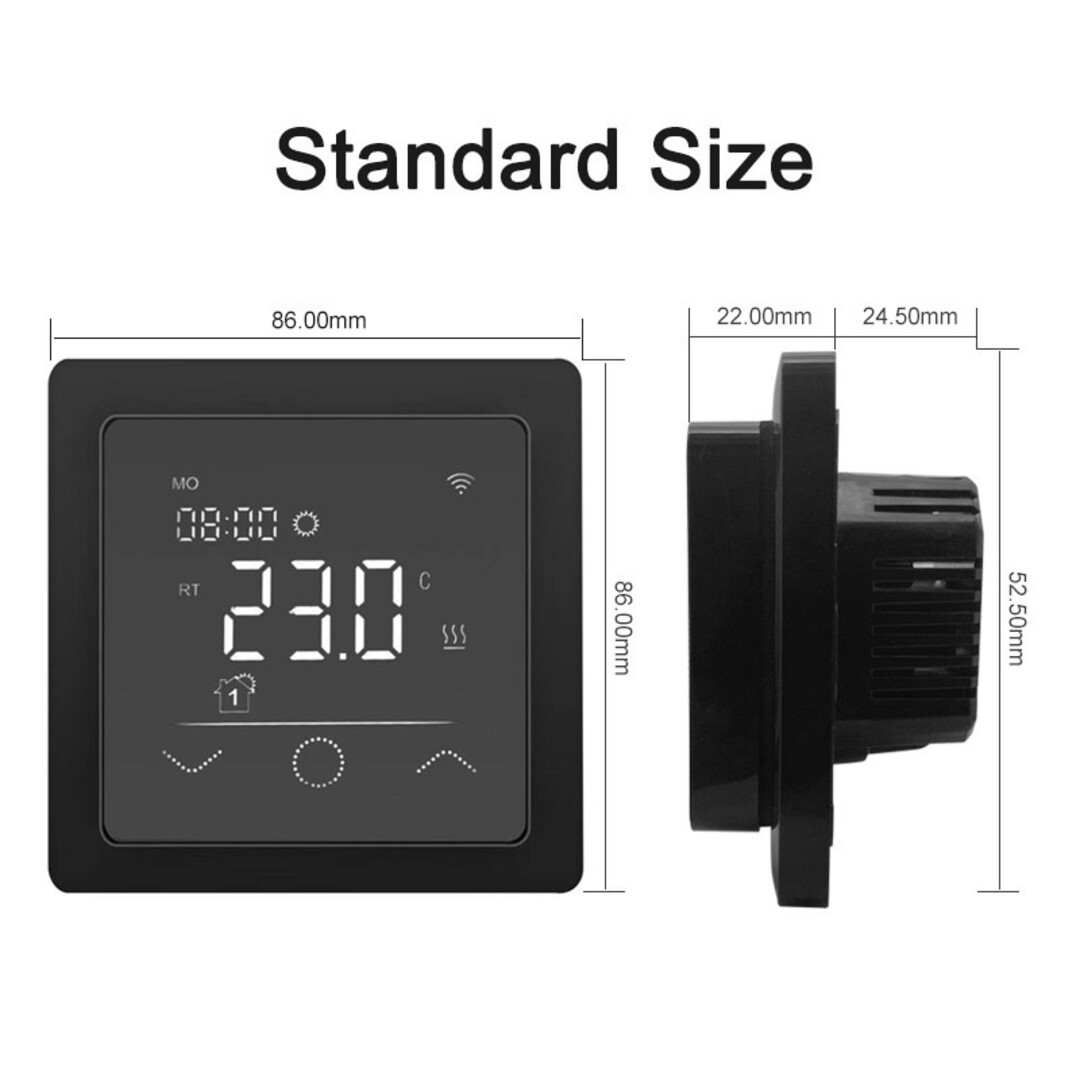

The PS60 is designed to fit perfectly into standard 55×55 mm frames, making replacement of existing thermostats quick and easy – without any structural modifications.

Key benefits at a glance

• Ready for EU regulations
  Equipped with mandatory energy-saving features such as open window detection and adaptive control.

• Fits existing frames (55×55 mm)
  Ideal for both renovation projects and new builds.

• Highly accurate temperature control
  Adjustable with a 0.5 °C differential and 0.1 °C setting and display accuracy.

• Fully smart and connected
  App control, voice control and real-time energy consumption insights.

• Professional quality at a competitive price

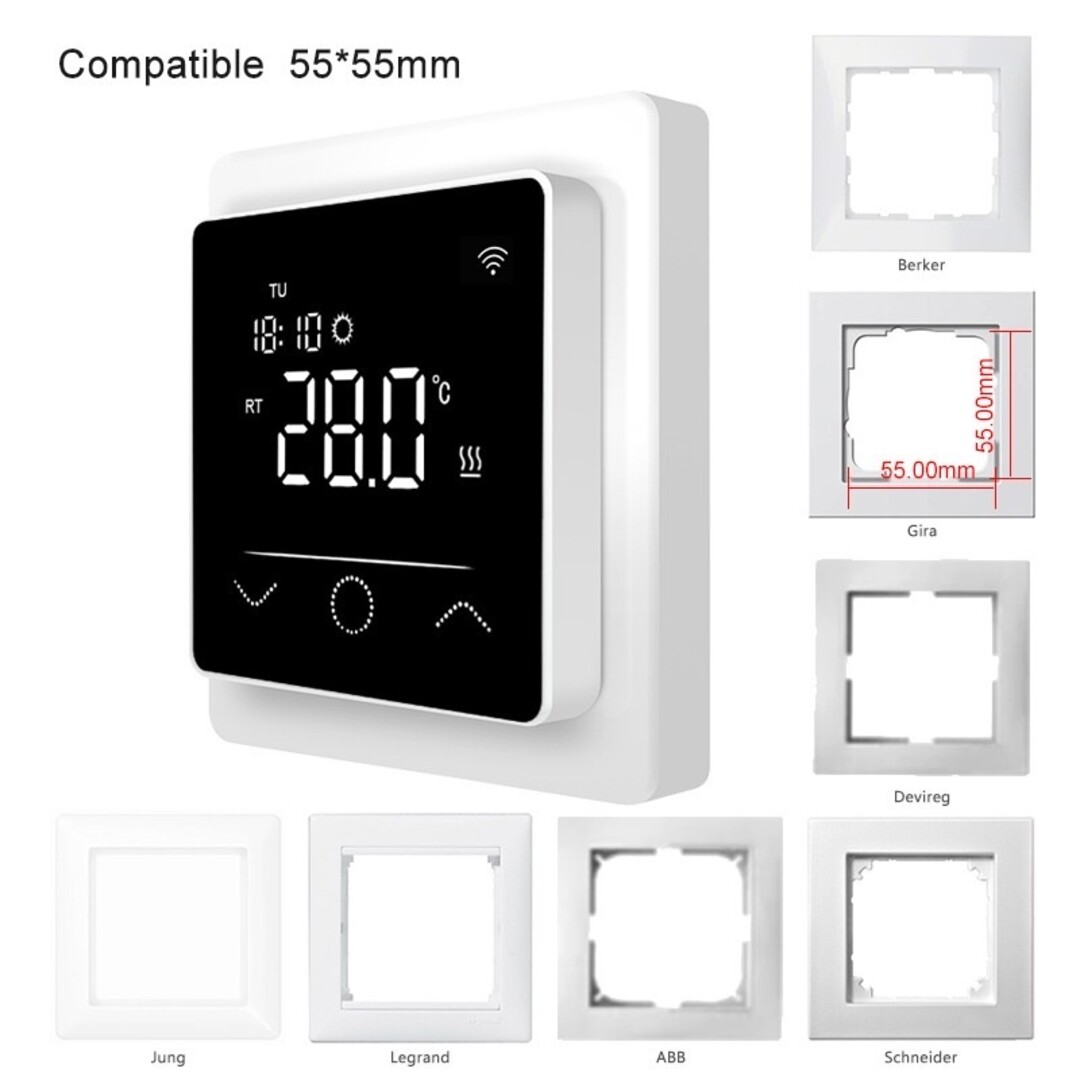

Compatible with standard frames

The Pro-mat PS60 is compatible with standard 55×55 mm frames and can be seamlessly combined with switches and sockets from, among others, the following brands:

• Liregus

• Danfoss

• ELKO

• Schneider Electric

• Berker

• ABB

➡️ Existing frames can simply remain in place.

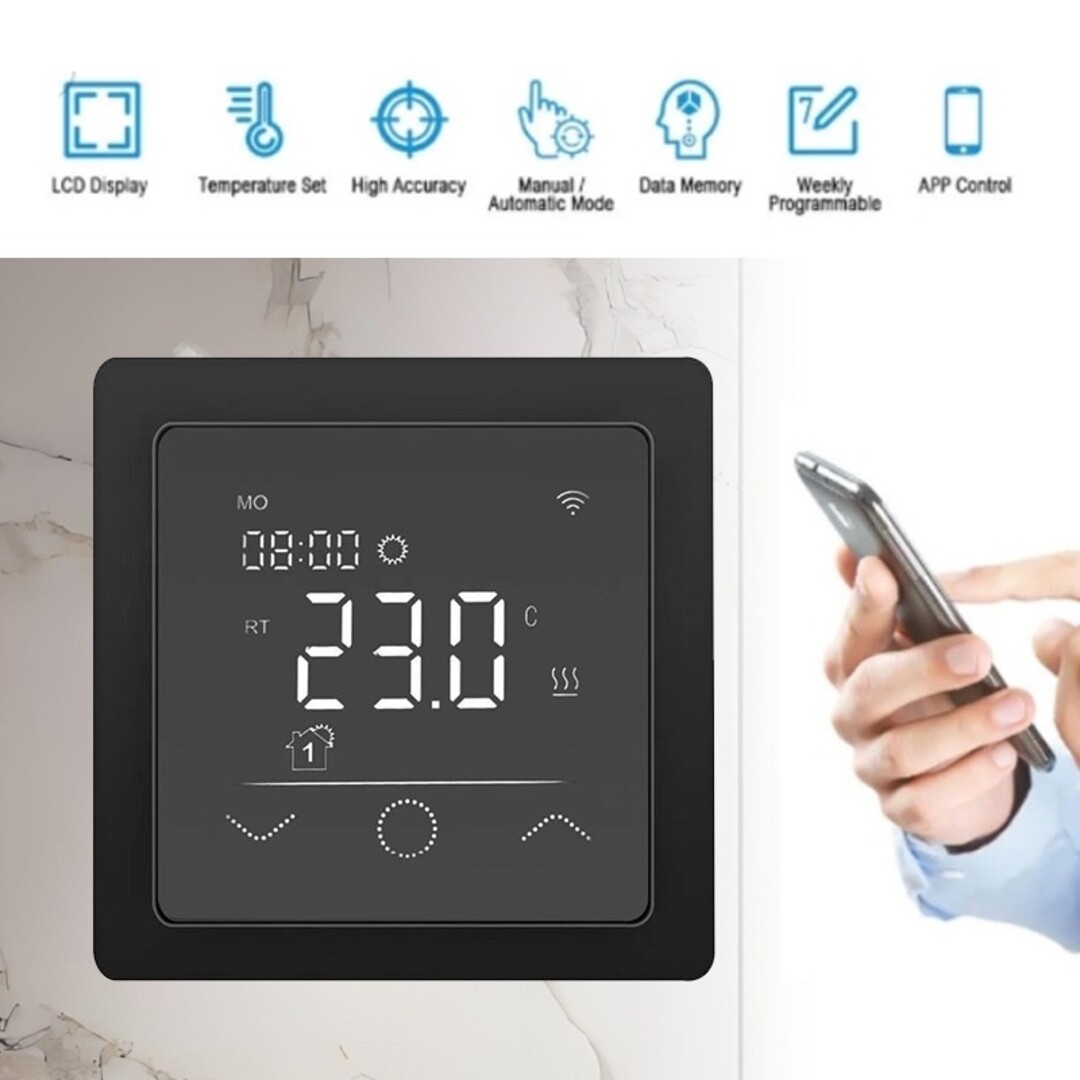

Smart features & control

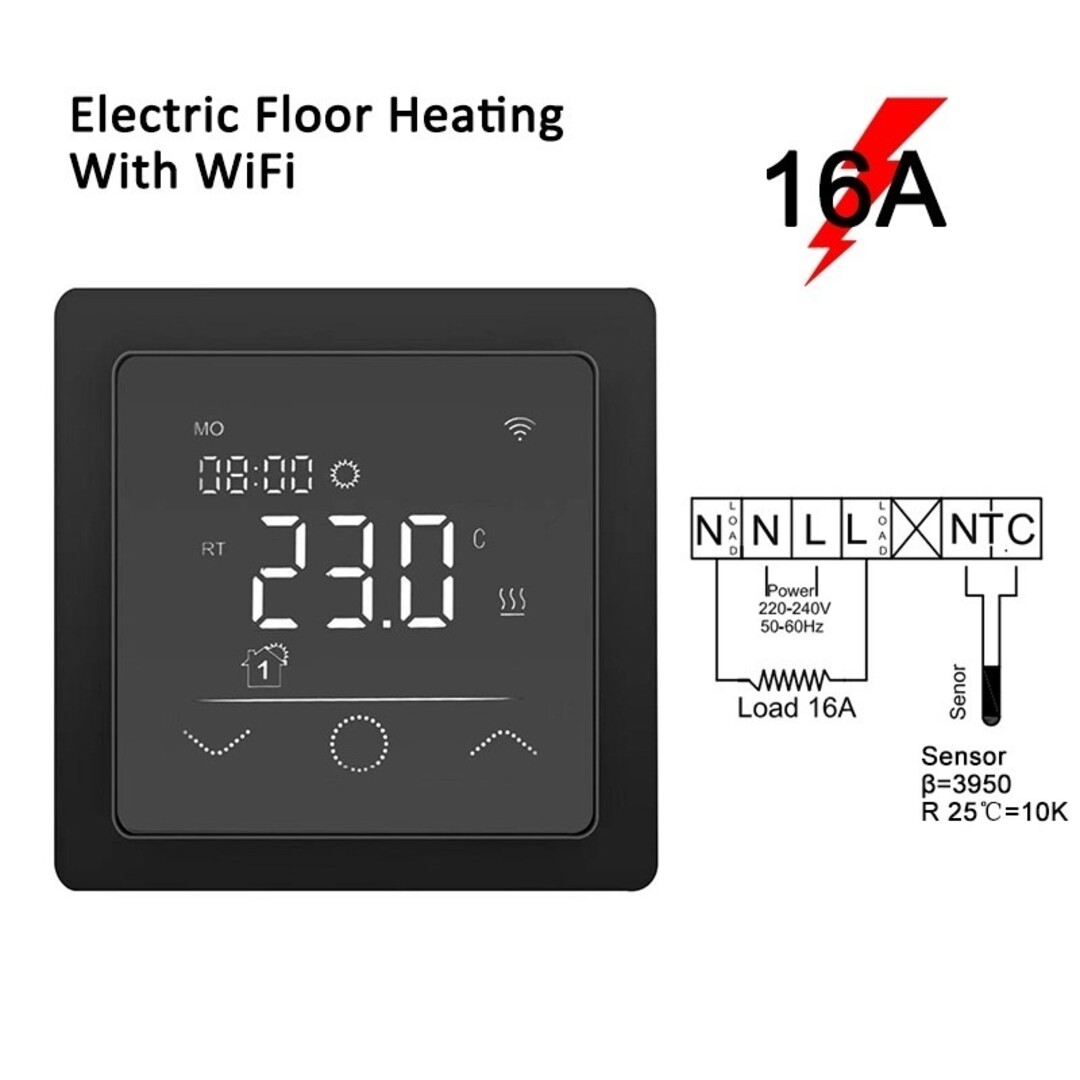

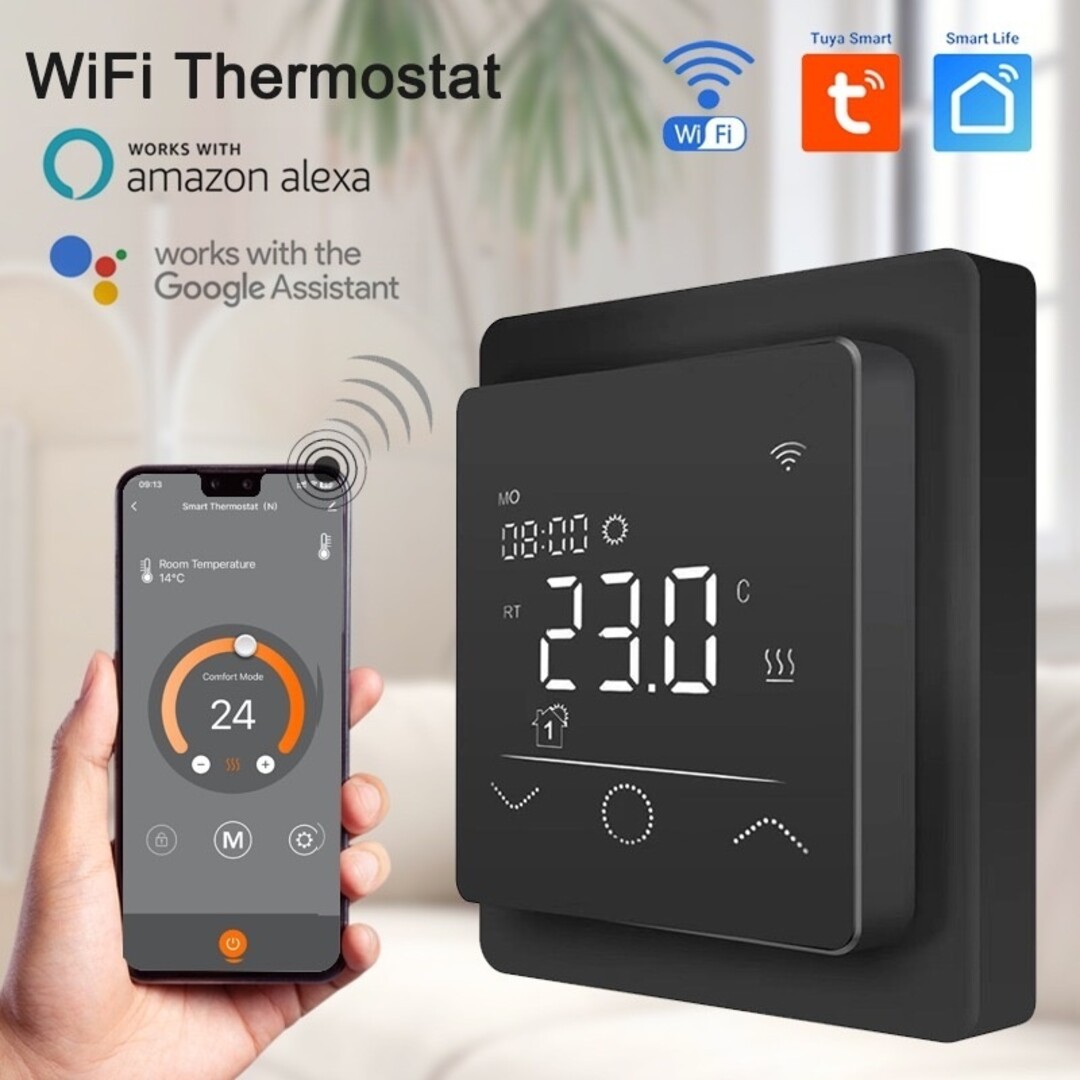

• WiFi thermostat for electric underfloor heating

• Control via Tuya Smart App (iOS & Android)

• Remote access outside the home via 3G / 4G / 5G

• Compatible with Amazon Alexa & Google Assistant

• Open Window Detection – automatically switches off when heat loss is detected

• Self-learning, adaptive temperature control

• Energy consumption monitoring

• Power failure memory

• Multilingual support

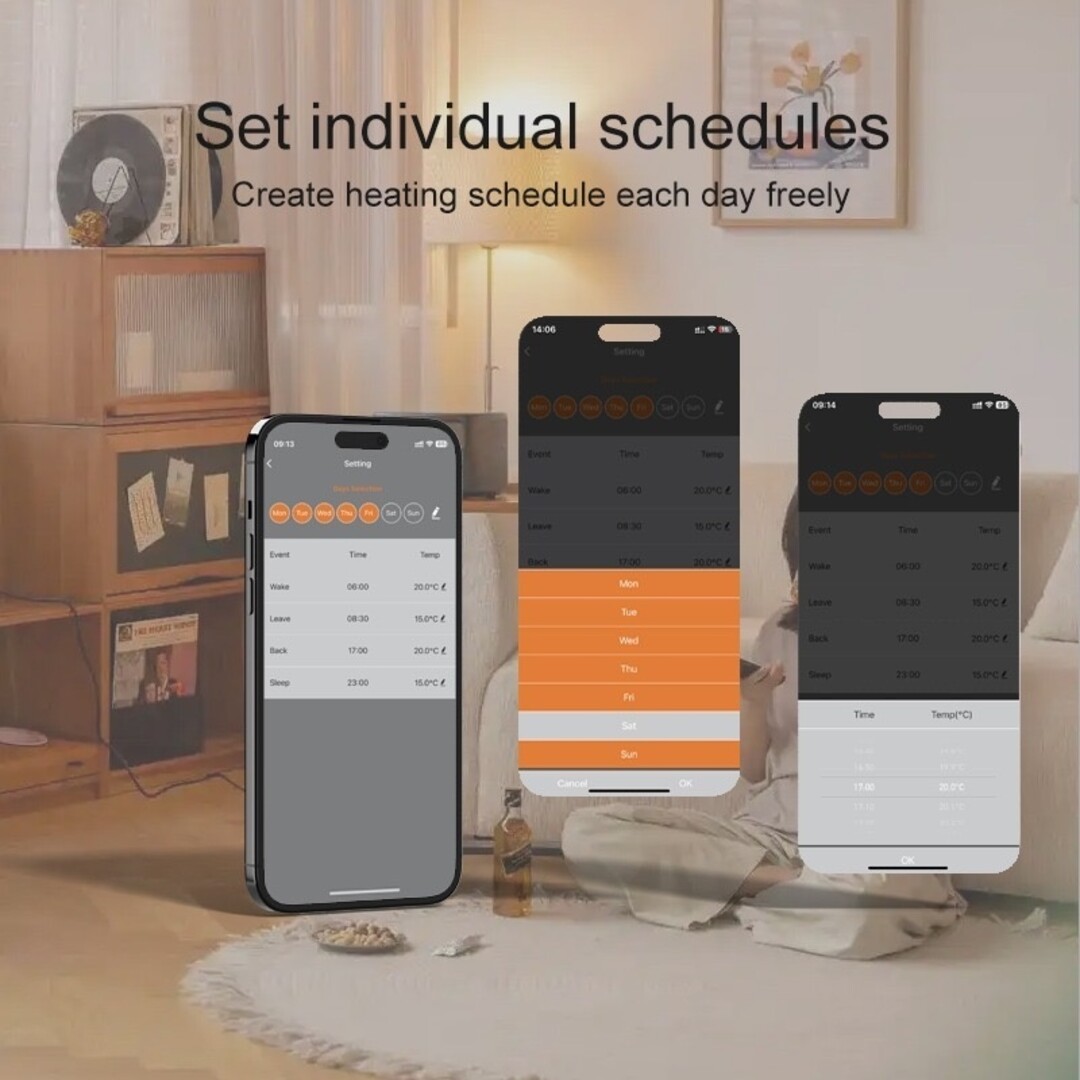

Advanced weekly programming

Unlike many standard thermostats, the PS60 offers maximum programming flexibility:

• 5+1+1 and 0+7 weekly programs

• Each day individually programmable

• Ideal for changing work and living schedules

This is significantly more flexible than common 5+2 or 7+0 schedules.

Sensor compatibility – no additional installation required

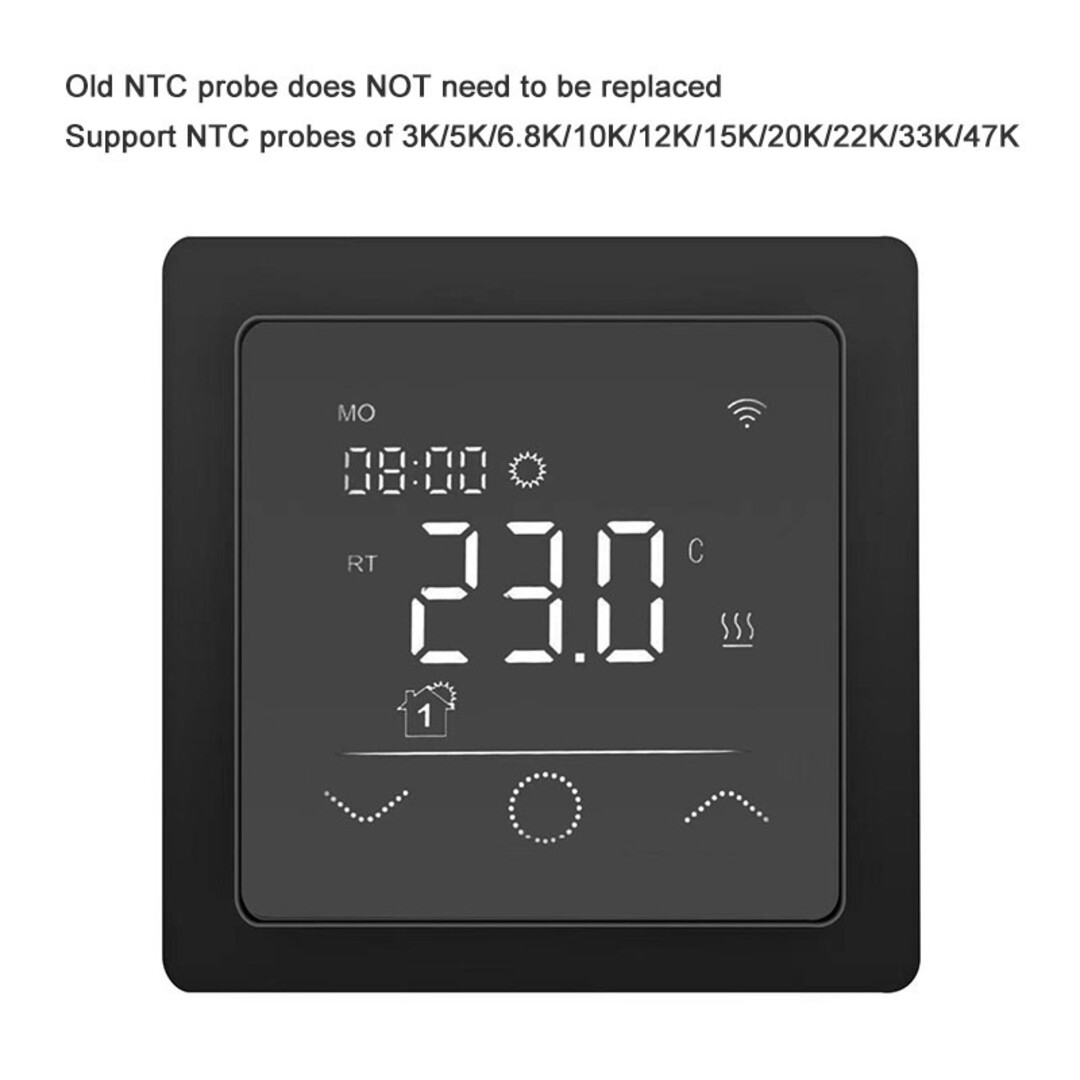

The PS60 supports 10 different floor sensor resistances:

3k / 5k / 6.8k / 10k / 12k / 15k / 20k / 22k / 33k / 47k

➡️ Already installed a floor sensor?
In most cases, no replacement is required.

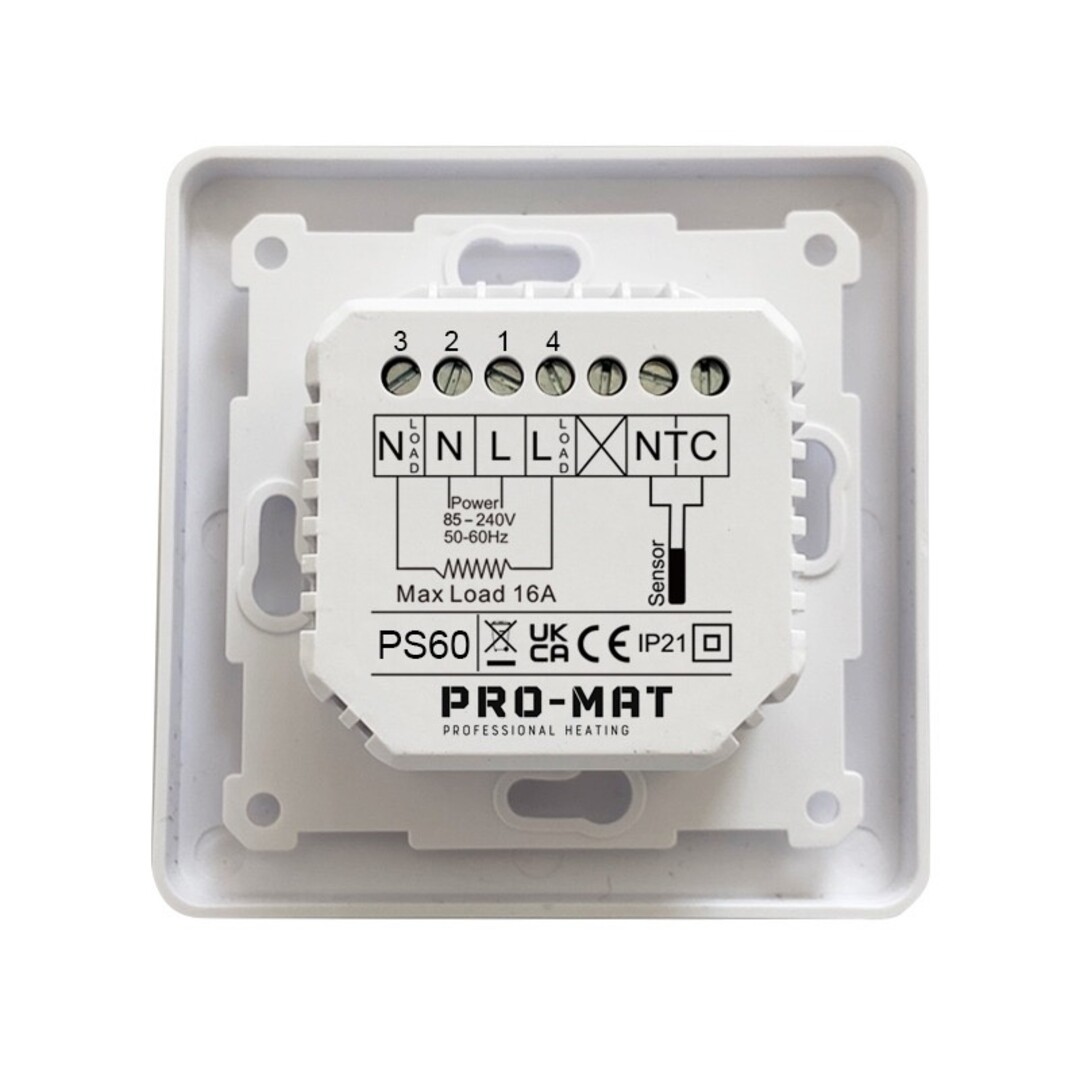

Technical specifications

• Temperature range: 5 – 40 °C

• Differential: 0.5 °C

• Setting & display accuracy: 0.1 °C

• Power supply: mains powered

• Protection class: IP21

• Certification: CE & RED

• Installation: flush-mounted, 55×55 mm

Design & colours

Available in several modern finishes:

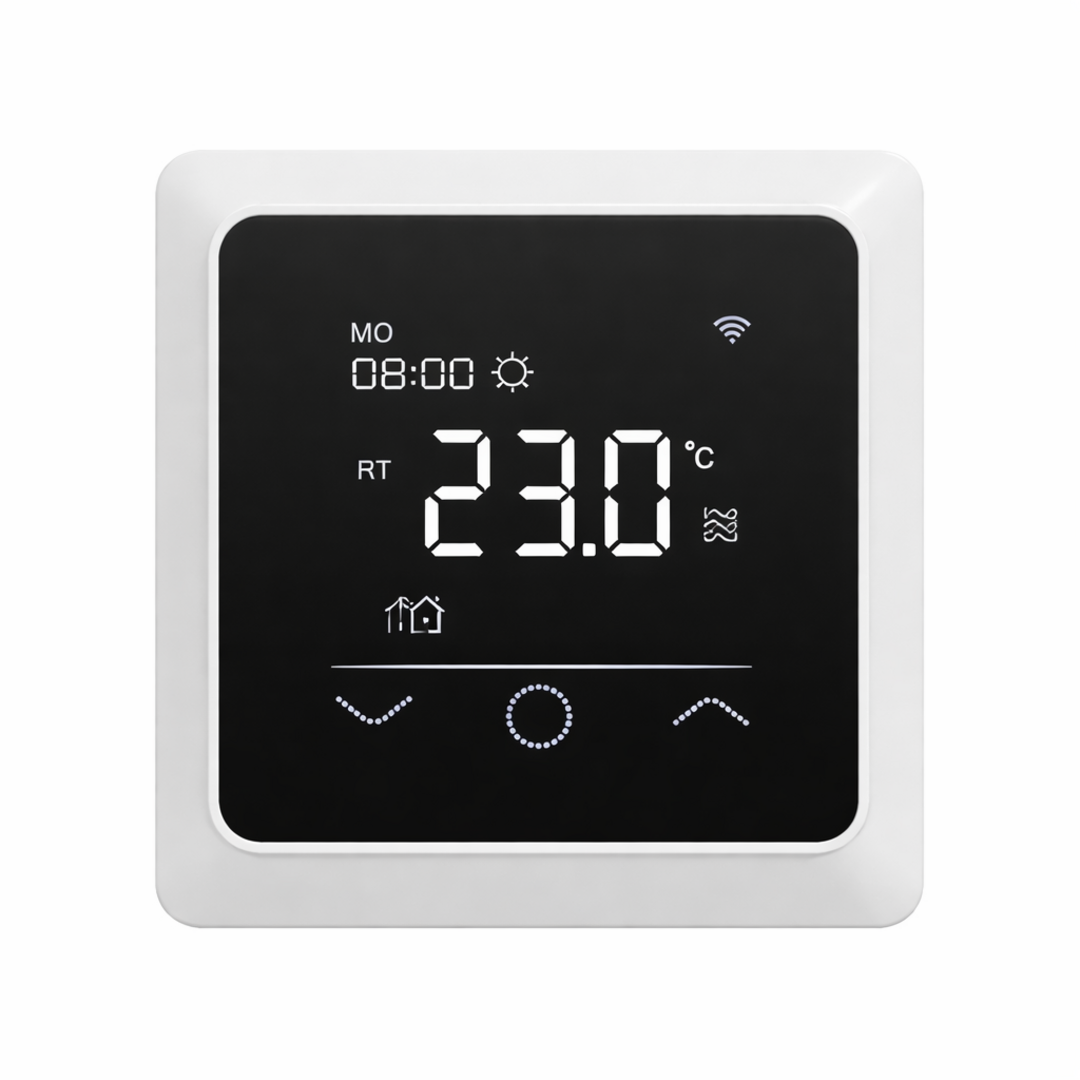

• White

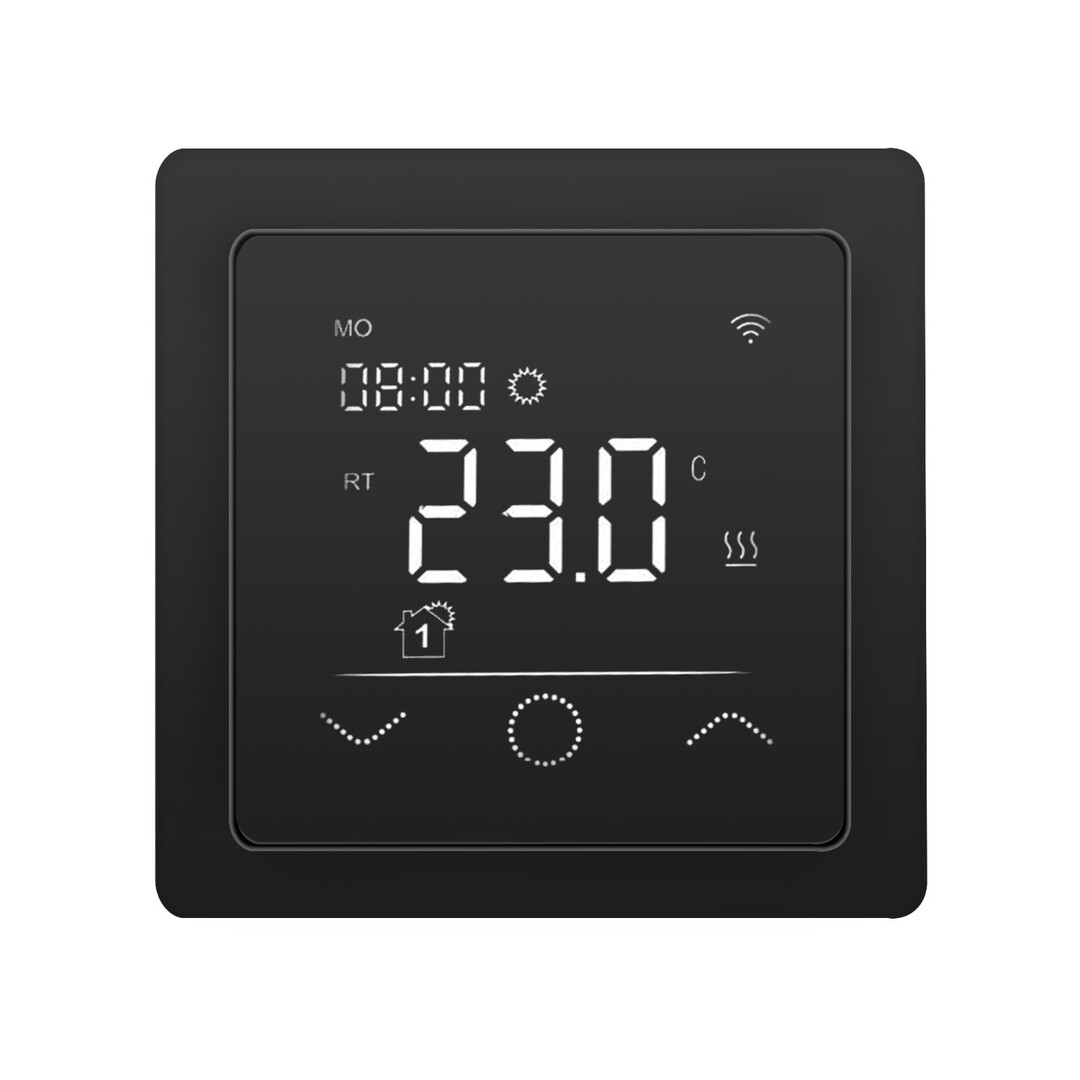

• Full black

Blends seamlessly into both modern and classic interiors.
